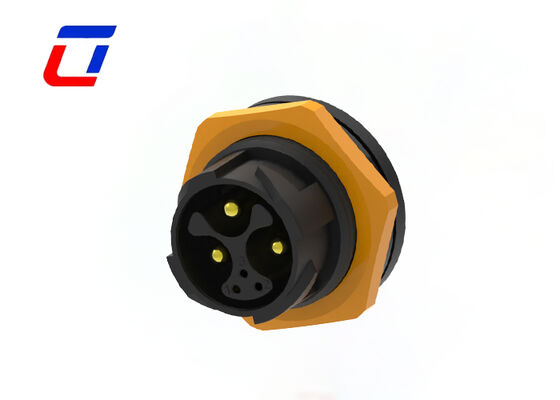

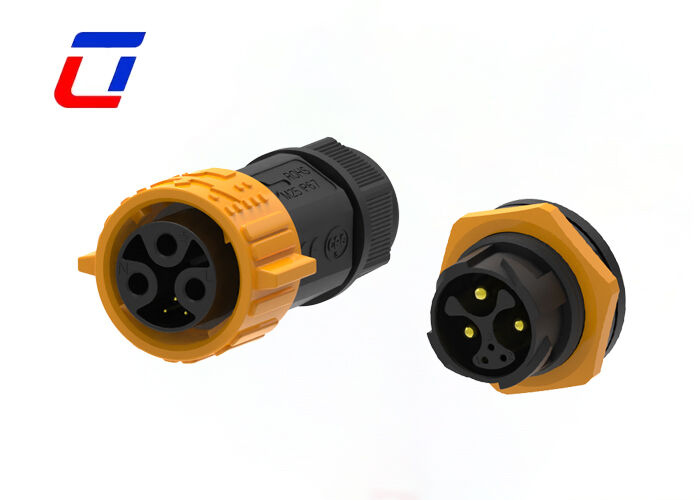

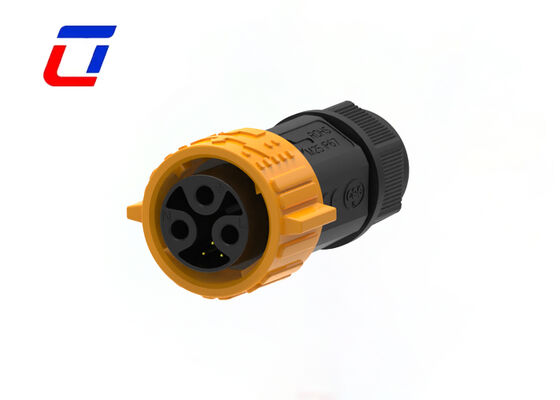

Name: 3+3 Pin M25 Plug And Socket Connector IP67 Quick Lock Signal Power Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Inicio Productos Zócalo impermeable del enchufe

3+3 Pin M25 Plug And Socket Connector IP67 Quick Lock Signal Power Connectors

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ulinkcon
Certificación:	CE/Rohs
Número de modelo:	M25

Pago y Envío Términos:

Cantidad de orden mínima:	Negociación
Precio:	Negociable
Detalles de empaquetado:	Caja
Tiempo de entrega:	Entre 5 y 8 días hábiles
Condiciones de pago:	T/T, D/A, D/P, MoneyGram, L/C
Capacidad de la fuente:	100000 parejas por mes

Contacto

Descripción detallada del producto

Número de pines:	3+3PIN	Clasificación impermeable:	IP67
Actual:	15A	Rango de temperatura:	-40℃~+105℃
Material:	Nylon	Tipo:	Enchufe macho hembra
Resaltar:	3+3 pin M25 waterproof connector , IP67 quick lock plug socket , signal power connector with warranty

3+3 Pin M25 Plug And Socket Connector IP67 Quick Lock Signal Power Connectors

Waterproof Connector M25 3+3 Pin IP67 Male Female Quick Lock Plug Socket

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features	3+3 positions, 3 signal positions, contacts preloaded
Electrical Characteristics	600V max. (AC/DC)
Body Features	PA66 shell material, low fire hazard thermoplastic, elastomer sealed, side entry style
Contact Features	15A max. current rating, pin-socket contact type
Mechanical Attachment	Cable mount (free-hanging), keyed mating alignment, with mating retention
Dimensions	Wire size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating temperature: -40°C to 105°C, IP67 protection level
Industry Standards	UL 94V-0 flammability rating

Key Advantages

Core Pin Configuration, Compatible with Signal and Power Transmission: Adopts a 3+3 pin design, which can realize signal transmission and power supply functions simultaneously, eliminating the need to match multiple connectors and effectively simplifying circuit layout while improving equipment integration.

Various Terminal Options, Meeting Different Installation Scenarios: Offers two optional methods: screw terminals and soldering terminals. Screw terminals do not require soldering and can realize on-site quick assembly; soldering terminals are suitable for wiring scenarios that require soldering and fixing, flexibly meeting the installation needs of different users.

IP67 Protection Level, Adapting to Complex and Harsh Environments: Reaches IP67 high protection standard, with complete dustproof and short-term water immersion protection capabilities, which can effectively resist external erosion such as dust, rainwater and moisture, ensuring stable work in complex environments such as outdoors and industrial workshops.

Application Industries

Communications Application Product coding machines Inventory product coding Inkjet systems Solar System Industrial inkjet equipment Electric power equipment Laboratory forensic & pathology equipment Communications equipment Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
