Name: Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Inicio Productos Conector de datos a prueba de agua

Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ulinkcon
Certificación:	CE/Rohs
Número de modelo:	M19

Pago y Envío Términos:

Cantidad de orden mínima:	Negociación
Precio:	Negociable
Detalles de empaquetado:	Carton de exportación de alta calidad
Tiempo de entrega:	Entre 3 y 6 días hábiles
Condiciones de pago:	T/T, D/A, D/P, MoneyGram, L/C
Capacidad de la fuente:	100000 parejas por mes

Contacto

Descripción detallada del producto

Número de pines:	6 pines	Actual:	10A
Tensión nominal:	300V	Clasificación impermeable:	IP67
Color:	Rojo Azul Blanco Negro Amarillo	Temperatura:	-40~+105℃
Resaltar:	M19 6 pin waterproof connector , outdoor waterproof data connector , male female wire connector waterproof

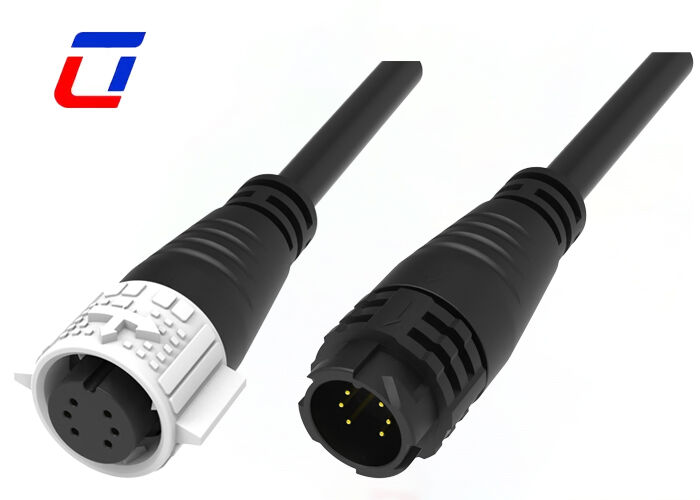

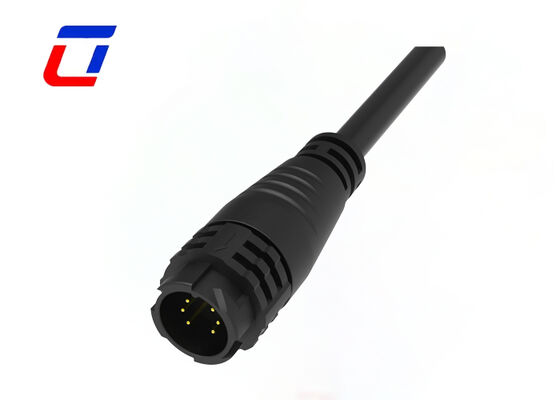

M19 6-Pin Outdoor Waterproof Data Connector

Product Overview

This industrial-grade M19 6-pin waterproof connector is specifically engineered for outdoor data transmission applications. Featuring excellent sealing performance and stable conductivity, it provides reliable data connections for outdoor electronic equipment. The male-female pairing design ensures precise 6-pin core connections for efficient transmission of various low-current data signals.

Key Features

IP67 rated waterproof and dustproof protection
Push-lock quick release system for easy installation
High-conductivity brass terminals with gold plating
Wide operating temperature range: -40°C to +105°C
Weather-resistant PA66 housing material
Multiple pin configurations available (2-20 pins)
Wire-to-wire and wire-to-board assembly options
10A maximum current rating for continuous operation
Custom cable assembly and OEM/ODM services available

Electrical Specifications

Number of Poles	6-pin configuration
Current Rating	10A maximum
Voltage Rating	300V AC maximum
Durability Voltage	1000V AC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Resistance	500 MΩ at 500V DC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1 meter / 30 minutes)
Housing Material	PA66
Contact Material	Gold-plated brass
Seal Material	Silicone

Application Industries

Communications equipment
Industrial inkjet systems and coding machines
Solar power systems
Electric power equipment
Laboratory and forensic equipment
Heavy machinery
Security monitoring systems
Smart agriculture
Industrial automation
New energy equipment

Product Dimensions

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector's insulation material and contact spacing. Some components may not function properly below their rated voltage specification.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—typically 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation agreements.
