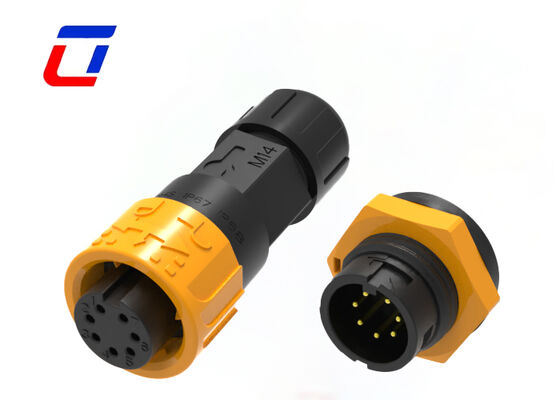

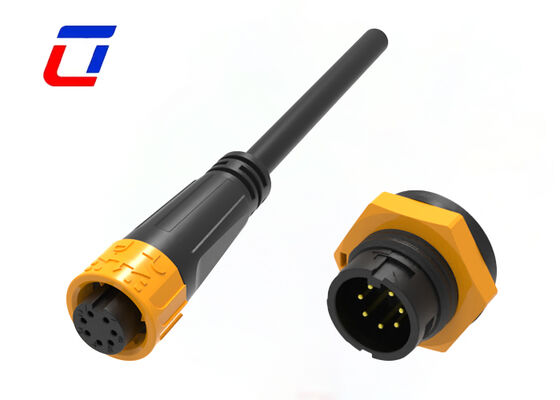

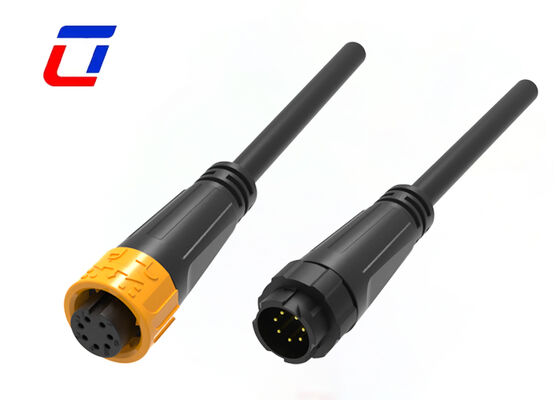

300V M16 7 Pin Waterproof Connector Push Locking Male Female Cable To Cable/Board Connectors

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ulinkcon
Certificación:	CE/Rohs/TUV/UL
Número de modelo:	M16

Pago y Envío Términos:

Cantidad de orden mínima:	Negociación
Precio:	Negociable
Detalles de empaquetado:	1.Bolsa de plástico; 2.Cartón; 3.Según los requisitos del cliente
Tiempo de entrega:	3~6 días laborables
Condiciones de pago:	T/T, D/P, L/C, D/A, Western Union, Moneygram
Capacidad de la fuente:	100000 pares mensuales

Contacto

Descripción detallada del producto

Alfiler:	7 pines	Clasificación actual:	5A para datos
Nivel de protección:	IP67	Clasificación resistente al fuego:	UL94-V0
Material de contacto:	Latón chapado en oro	Escenarios de aplicación específicos:	Sistemas de riego/Sensores industriales
Resaltar:	300V waterproof M16 connector , 7 pin push lock connector , M16 cable to board connector

5A M16 Nylon 7 Pin Waterproof Connector 300V Data Quick Lock Connector

Product Overview

This is a M16 7pin waterproof connector with a rated voltage of 300V, supporting stable simultaneous transmission of signals. With a reasonable pin layout and high-density wiring design, it saves installation space. Equipped with matching male and female heads, it is compatible with two mainstream installation methods: cable-to-cable and cable-to-board. It features strong versatility and is widely applicable to industrial equipment, outdoor devices, smart equipment and other connection scenarios.

Main Features

Push lock quick release system for easy installation
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 24Pin configurations
Field assembly versions: wire to wire and wire to board
Cable assembly service supported with custom options available
OEM/ODM services welcome

Product Specifications

Dual Docking Compatibility for Flexible Installation:Featuring an innovative dual-mode design, this connector supports both cable interconnection and cable-to-circuit board connection without extra accessories or structural modification. It satisfies long-distance cross-device wiring and embedded board mounting requirements in one unit, effectively reducing model selection costs and inventory pressure.
7-Pin High-Density Layout for Efficient Multi-Channel Data Transmission:The precisely arranged 7 independent channels adopt isolated transmission design, supporting synchronous transmission of multiple sensor data and control signals. It eliminates signal crosstalk, data loss and transmission delay. The compact pin layout maximizes space utilization of the M16 miniature structure, meeting high-precision data interaction demands of intelligent devices.
300V High Withstand Voltage for Enhanced Electrical Safety:Adopting thickened reinforced insulation structure and premium insulating materials, the connector features a rated voltage of 300V. It resists industrial voltage fluctuations and instantaneous high-pressure impact, effectively preventing electric leakage, breakdown and short-circuit risks, ensuring long-term stable operation in complex electrical environments.
Thread-Free Push Lock Structure for High-Efficiency Operation:The upgraded press-type self-locking buckle realizes automatic fastening after insertion and quick release by pressing. Without twisting operation, the assembly process is labor-saving and efficient. The tightly locked structure provides outstanding anti-vibration and anti-loosening ability to avoid signal interruption caused by equipment vibration and cable pulling.
IP67 Full Waterproof & Dustproof Protection:Adopting multi-angle precision fitting sealing technology, the connector achieves gapless closure after locking. It fully blocks rainwater, dust, moisture and oil contamination, maintaining accurate and stable internal data transmission in open-air, humid and dusty industrial working conditions.
Miniature M16 Size for Lightweight Equipment Integration:The compact M16 outer diameter saves installation space, perfectly matching the lightweight integration design of precision instruments, small intelligent devices and embedded industrial control equipment. With high-precision male and female docking tolerance, it is fully applicable to standardized mass industrial production.

Electrical Parameters

Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Images

Frequently Asked Questions

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

What is your Minimum Order Quantity (MOQ)?

There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
