Name: 300V M19 10 Pin Waterproof Data Connector Push Locking Circular Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Inicio Productos Conector circular a prueba de agua

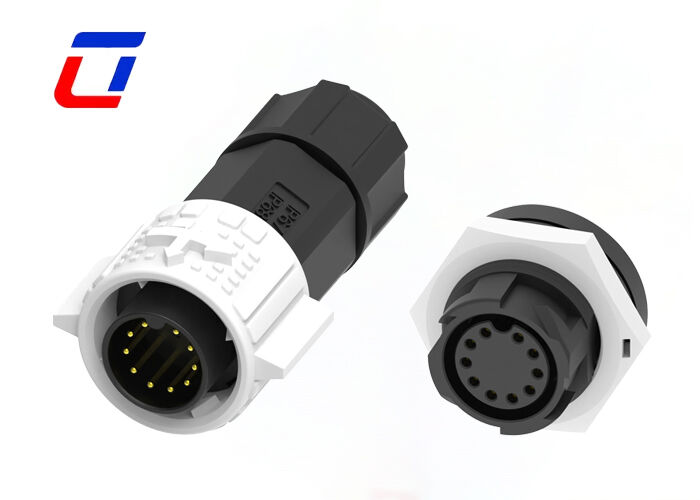

300V M19 10 Pin Waterproof Data Connector Push Locking Circular Male Female Connector

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ulinkcon
Certificación:	CE/Rohs/TUV/UL
Número de modelo:	M19

Pago y Envío Términos:

Cantidad de orden mínima:	Negociación
Precio:	Negociable
Detalles de empaquetado:	1.Bolsa de plástico; 2.Cartón; 3.Según los requisitos del cliente
Tiempo de entrega:	3~6 días laborables
Condiciones de pago:	T/T, D/P, L/C, D/A, Western Union, Moneygram
Capacidad de la fuente:	100000 pares mensuales

Contacto

Descripción detallada del producto

Material:	Nylon	Clasificación actual:	5A
Tensión nominal:	300V	tipo:	Enchufe/zócalo
Nivel de protección:	IP67	Material de contacto:	Latón chapado en oro
Resaltar:	300V waterproof circular connector , M19 10 pin data connector , push locking male female connector

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors For Signal

Quick Description

The 300V M19 10Pin Waterproof Data Connector is a high-precision circular connection solution designed for multi-channel industrial signal transmission. Equipped with matched male and female pairs, it integrates 10 independent signal channels to support synchronous transmission of multiple sensor, control and communication signals. Featuring tool-free push locking structure and standard M19 circular size, it delivers quick assembly and accurate alignment. With 300V high voltage resistance and IP67 full waterproof protection, this weather-resistant connector ensures stable and interference-free data transmission, serving as a reliable standardized accessory for industrial and smart device wiring systems.

10-Pin High-Density Multi-Channel Transmission:The 10 independent insulated pins support parallel transmission of multiple control commands, sensor data and communication signals. It solves the wiring limitation of low-pin connectors, integrates multi-path data interaction in one compact connector, simplifies equipment wiring layout, and ensures efficient and accurate signal linkage of intelligent equipment without mutual interference.

Precision Circular Male & Female Matching:Standard M19 circular structure with professional male and female pairing design ensures smooth plugging and accurate alignment with high fault tolerance. It avoids terminal damage and signal failure caused by misplugging. The compact circular shape saves installation space and supports embedded, external and panel mounting for diverse application scenarios.

Electrical Parameters
Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

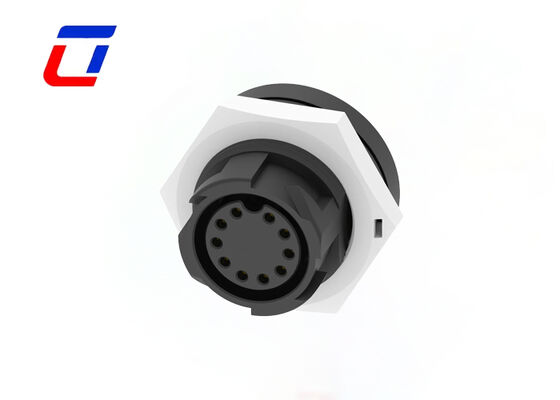

300V M19 10 Pin Waterproof Data Connector Push Locking Circular Male Female Connector 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

3. Q: Is there a discount for large - quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

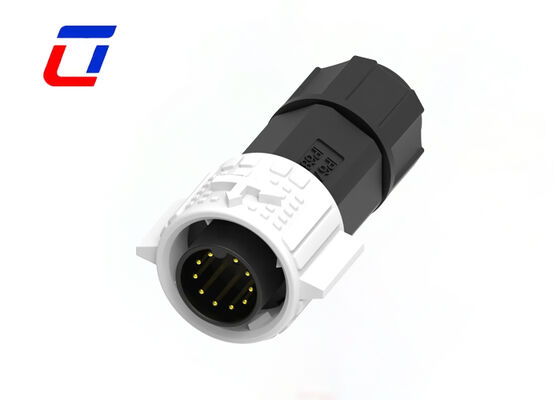

300V M19 10 Pin Waterproof Data Connector Push Locking Circular Male Female Connector 2
