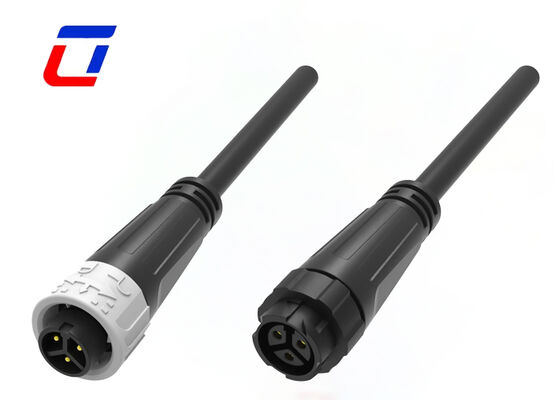

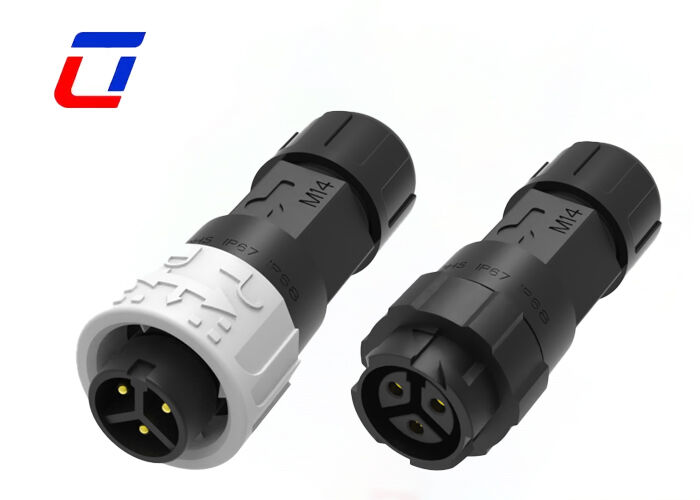

Name: M16 3 Pin 10A Plastic Male Female Connectors Push Lock Waterproof Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Inicio Productos Conector hembra-varón impermeable

M16 3 Pin 10A Plastic Male Female Connectors Push Lock Waterproof Power Connector

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Ulinkcon
Certificación:	CE/Rohs
Número de modelo:	M16

Pago y Envío Términos:

Cantidad de orden mínima:	Negociación
Precio:	Negociable
Detalles de empaquetado:	Carton de exportación de alta calidad
Tiempo de entrega:	Entre 3 y 6 días hábiles
Condiciones de pago:	T/T, D/A, D/P, MoneyGram, L/C
Capacidad de la fuente:	100000 parejas por mes

Contacto

Descripción detallada del producto

Clasificación impermeable:	IP67	Número de pines:	3 pines
actual:	10A máximo para potencia	Tensión nominal:	300V
Clasificación resistente al fuego:	UL94-V0	Color:	Rojo Azul Blanco Negro Amarillo
Resaltar:	M16 waterproof power connector , 3 pin push lock connector , 10A male female connector

3Pin Waterproof IP67 Connector M16 Push Locking Power Connector

3 Pin Power Connector Product Overview

The M16 3Pin 10A Push Lock Waterproof Male & Female Connector is a lightweight and compact power connection solution built with an advanced push-lock structure. It supports tool-free instant locking with simple insertion, eliminating traditional threaded twisting operation. Featuring a miniature M16 outer diameter and a 3-pin pure power layout, it delivers stable 10A rated current transmission. With IP67 waterproof performance and integrated high-strength plastic housing, this compact connector is ideal for small and medium-sized outdoor devices, precision electronic controls and lightweight industrial equipment.

M16 IP67 Waterproof Connectors Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin

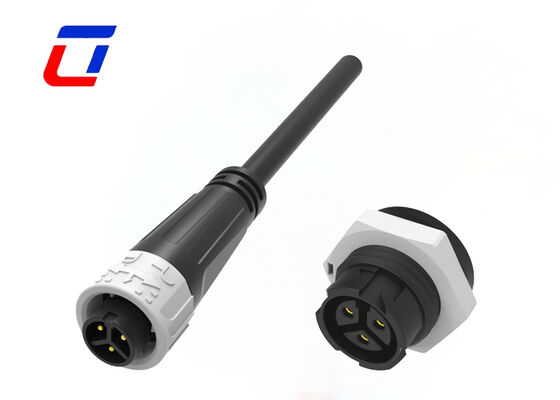

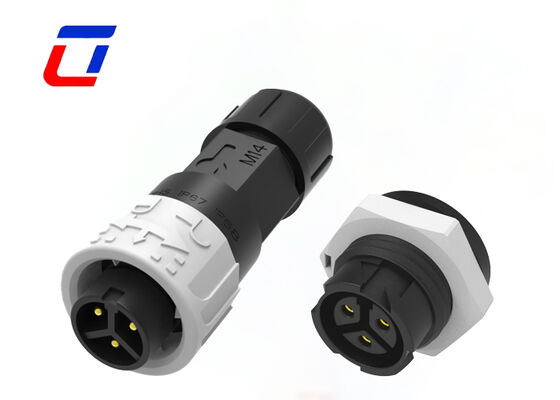

Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications Of 3 Pin Power Connector

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

3 Pin Male To Female Connector Design & Construction

Effortless Push-Lock Connection: Adopting an upgraded push-type self-locking buckle structure, this connector achieves automatic firm locking after insertion without tools or rotation. It provides clear locking feedback and allows quick disassembly, greatly improving production efficiency and simplifying daily equipment maintenance.
Ultra-compact M16 Mini Size: Designed with a slim M16 outer diameter, the lightweight structure saves installation space perfectly. It is highly suitable for narrow internal equipment gaps, embedded devices and small outdoor cabins, serving as a refined alternative to larger M25 connectors for precision equipment matching.
Stable 10A Pure Power Transmission: The dedicated 3-pin power layout ensures uniform current distribution and large-area stable contact. It supports long-term 10A continuous current output with low temperature rise and zero intermittent connection risks, fully meeting the steady power supply demands of small industrial devices and lighting systems.
Integrated Plastic Housing with Superior Insulation & Weather Resistance: Made of high-toughness flame-retardant engineering plastic, the connector features excellent insulation and voltage resistance to prevent electric leakage. The material delivers outstanding anti-aging, UV-resistant and temperature-resistant performance, maintaining stable structure under long-term outdoor exposure and harsh temperature changes.
IP67 All-Weather Waterproof & Dustproof Protection: Equipped with high-density flexible sealing gaskets, the connector achieves fully tight fitting after push-locking. It effectively blocks rainwater, dust, moisture and fog intrusion, ensuring reliable operation in open-air environments, humid workshops and various lightweight outdoor electrical systems.

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

What is rated voltage?

Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
